HDCU-2500

SONY HDCU-2000/2500 OPERATIONAL MANUAL Camera control for HDC-2000 Series and HDC-1500 Series cameras HDCU-2500 is a half 19”-rack-size camera control base station for the 3G Double-Speed Multi Format HD system camera HDC-2000 Series and the HDC-1500 Series, enabling more creative capabilities for studio, outside broadcast and sports productions. Wide range of interfaces and network control The HDCU-2500 is equipped with a range of built-in interfaces such as 3G-SDI/HD-SDI/SD-SDI outputs, 3G-SDI/HD-SDI/SD-SDI/analogue composite return inputs, and a down-converted analogue composite monitor output. In addition, a variety of output interfaces are offered via optional boards, which can be installed in one free slot on the HDCU-2500. Furthermore, a built-in LAN interface (10BASE-T/100BASE-TX) allows the camera to be controlled over a network. Menu buttons and indicators that show the status of optical transmission on the front panel provide great operability. Optic fibre extension includes power to the camera head With the optional HKCU-2040 4K/HDR…

Read more

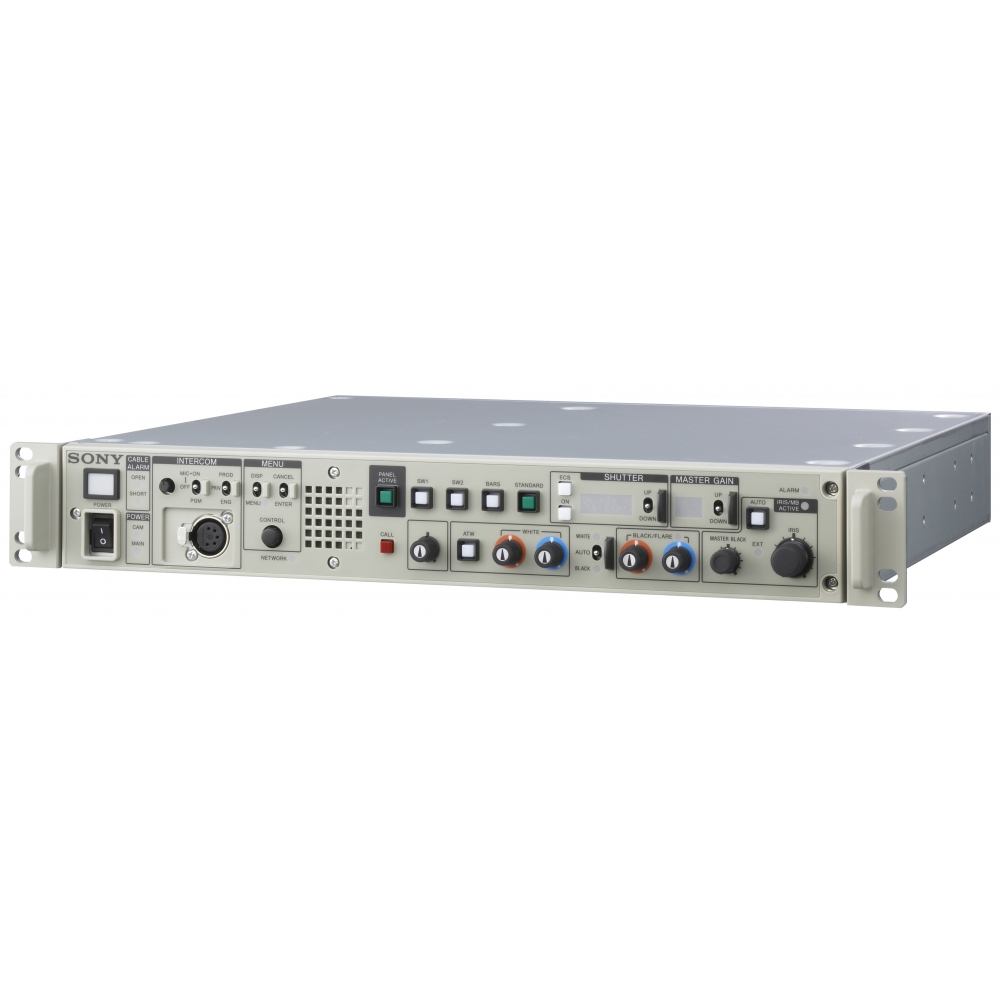

    Previous Next SONY HXCU-100 OPERATIONAL MANUAL Full HD digital transmission up to 1200m* using standard triax cable Equipped with the latest Sony-developed digital transmission technology, the HXCU-100 Camera Control Unit (CCU) can transmit high-resolution pictures between the camera and CCU, supporting most live production applications. The HXCU-100 features flexible interfaces of selectable inputs/outputs between HD-SDI and SD-SDI. * The maximum cable length depends on the camera system configuration, lens type, and the number of cable connections. Simple studio system with optional remote control The optional HKCU-FP1 CCU Front Control Panel is also available. When the blank front panel of the HXCU-100 is replaced with the HKCU-FP1, a simple remote control system can be configured. Many functions of the HXC-100 camera can be controlled by the control knobs and switches on the HKCU-FP1. Highly compact design The 1.5 RU-size HXCU-100 CCU creates a standardized 19-inch rack system that is…

Read more

2/2
