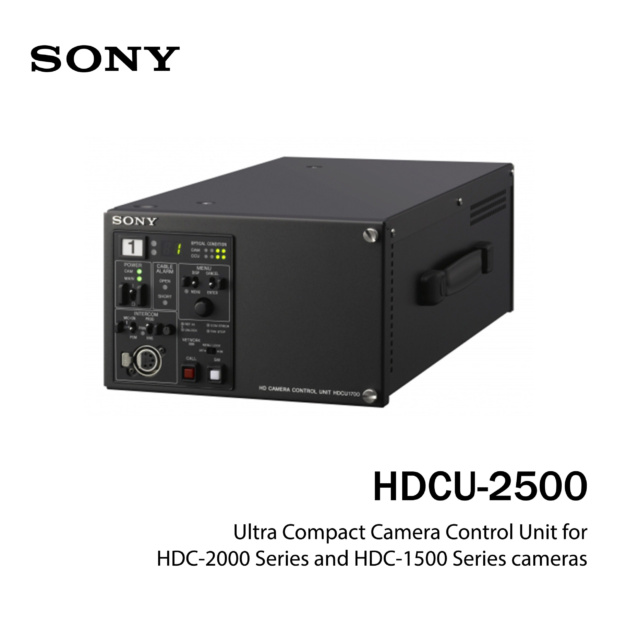

SONY HDCU-2500
SONY HDCU-2000/2500 OPERATIONAL MANUAL Camera control for HDC-2000 Series and HDC-1500 Series cameras HDCU-2500 is a half 19”-rack-size camera control base station for the 3G Double-Speed Multi Format HD system camera HDC-2000 Series and the HDC-1500 Series, enabling more creative capabilities for studio, outside broadcast and sports productions. Wide range of interfaces and network control The HDCU-2500 is equipped with a range of built-in interfaces such as 3G-SDI/HD-SDI/SD-SDI outputs, 3G-SDI/HD-SDI/SD-SDI/analogue composite return inputs, and a down-converted analogue composite monitor output. In addition, a variety of output interfaces are offered via optional boards, which can be installed in one free slot on the HDCU-2500. Furthermore, a built-in LAN interface (10BASE-T/100BASE-TX) allows the camera to be controlled over a network. Menu buttons and indicators that show the status of optical transmission on the front panel provide great operability. Optic fibre extension includes power to the camera head With the optional HKCU-2040 4K/HDR…
SONY RCP-750
Previous Next SONY HXC-100 & RCP-750 OPERATIONAL MANUAL The RCP-750 Remote Control Panel is designed for remote control of the Sony BVP/HDC-series Color Video Camera via the CCU/HDCU-series Camera Control Unit. The panel is connected to the CCU/HDCU-series Camera Control Unit (or the CNU-series Camera Command Network Unit, which is connected to the CCU/HDCU-series) by a special cable of up to 200 m (656 feet) in length. Features Optimal control parts arrangement for basic camera operation This remote control panel is provided with essential control functions for basic operation of a BVP/HDC series camera. The buttons, knobs, and other controls have been arranged according to their functions and with consideration to their frequency of use. Indicators and buttons light or flash to indicate the status of the system operation. Also, guard frames are provided to protect against accidental use of those buttons vital to camera operation. These features ensure easy and error-free use of this remote control panel. Controlling the automatic setup function The RCP-750/751 has…
SONY RCP-1000
Previous Next SONY RCP-1000 OPERATIONAL MANUAL The RCP-1000 is simple remote control panel with specialized basic operations. The iris and master black adjustment block employs a joystick type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used. Features Simple and compact This remote control panel is provided with the control functions required to perform the basic operations of cameras and enables the simple and accurate operation of various functions. IRIS/MB (master black) display window The IRIS window displays the iris setting as an F number. If the lens is closed, “CLS” is displayed. The Master black display window displays the master black setting value. Direct control filters and master gain buttons Easily access ND/CC filters as well as master gain control Customizable switch You can assign any…
SONY RM-BR300
Previous Next SONY RM-BR300 OPERATIONAL MANUAL Remote Control Unit for BRC series robotic cameras. Easy-to-use and ergonomic joystick design. Feature-rich control panel. RM-BR300 supports 16 pre-set positions (Exceptions are the BRC-300 and all SRG-series that only support 6 pre-set positions).
SONY RM-B150
Previous Next SONY RM-B150OPERATIONAL MANUAL The Sony RM-B150 paintbox is used to remotely control and paint any Sony camera which carries the Sony RM-P9 cable connector (9-pin remote connector). It is commonly used for with the PDW-F800, PMW-300, PMW-320 to match multiple cameras to one another. The RM-B150 is a compact paint-box making it the ideal remote for situations where you need to easily rack the iris of your camera or paint the image. Meaning you now can control the iris on your desired lens especially useful when using a telephoto lenses like the Canon HJ40x10, HJ40x14, or the XJ60x9.
SONY HXCU-100
Previous Next SONY HXCU-100 OPERATIONAL MANUAL Full HD digital transmission up to 1200m* using standard triax cable Equipped with the latest Sony-developed digital transmission technology, the HXCU-100 Camera Control Unit (CCU) can transmit high-resolution pictures between the camera and CCU, supporting most live production applications. The HXCU-100 features flexible interfaces of selectable inputs/outputs between HD-SDI and SD-SDI. * The maximum cable length depends on the camera system configuration, lens type, and the number of cable connections. Simple studio system with optional remote control The optional HKCU-FP1 CCU Front Control Panel is also available. When the blank front panel of the HXCU-100 is replaced with the HKCU-FP1, a simple remote control system can be configured. Many functions of the HXC-100 camera can be controlled by the control knobs and switches on the HKCU-FP1. Highly compact design The 1.5 RU-size HXCU-100 CCU creates a standardized 19-inch rack system that is…
