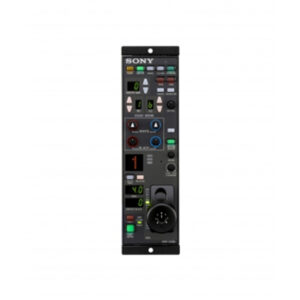

SONY RCP-1000
OPERATIONAL MANUAL
The RCP-1000 is simple remote control panel with specialized basic operations. The iris and master black adjustment block employs a joystick type control. Up to six units can be mounted in a 19-inch EIA rack. Various settings can be configured according to the operation configuration and the frequency with which functions are used.
Features
Simple and compact
This remote control panel is provided with the control functions required to perform the basic operations of cameras and enables the simple and accurate operation of various functions.
IRIS/MB (master black) display window
The IRIS window displays the iris setting as an F number. If the lens is closed, “CLS” is displayed. The Master black display window displays the master black setting value.
Direct control filters and master gain buttons
Easily access ND/CC filters as well as master gain control
Customizable switch
You can assign any function to a spare switch.
Compatible with a variety of control systems
HDC/HSC/BVP system camera users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700’s, two CNUs can be used to control a camera system of up to 24 cameras.
A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.
Specifications
Power supplyDC 10.5 V to 30 V Power consumption2 W Operating temperature5°C to 40°C (41°F to 104°F) Dimensions (W x H x D) (excluding protrusions)68 × 244 × 123.7 mm (2 3/4 × 9 5/8 × 4 7/8 in) Mass1.1 kg (2 lb 9 oz)
CCU/CNUMulti-connector 8-pin, female (x1) EXT I/OD-sub 9-pin, female (x1)
