EVI-H100S Manual
Sony EVI-H100S
With sleek, smart looks and flexible installation options, this Full HD PTZ (pan/tilt/zoom) camera is ideal for a wide range of virtual meeting, distance learning and remote monitoring applications.
The sensitive Exmor CMOS image sensor brings video conferences to life with crisply-detailed, Full HD picture quality – even in dimly-lit meeting rooms. Powerful 20x optical zoom delivers frame-filling close-ups. Fast, quiet PTZ operation ensures you never miss that crucial moment with HD-SDI video output.
Full HD image quality with 30fps frame rate
See every conference participant more clearly. The 1/2.8-type Exmor CMOS image sensor captures smooth, crisply detailed, high-contrast images with extremely low noise – even in low light conditions where other cameras struggle.
GET CLOSER WITH POWERFUL 20X OPTICAL ZOOM
The 20x optical zoom range is complemented by 12x digital zoom for frame-filling close-ups with every detail seen clearly. Responsive autofocus ensure that images stay clear and sharp, even at high zoom settings.
FAST, QUIET PTZ OPERATION
The powerful direct drive motor assures quiet, smooth, rapid movement to the target position over a wide pan/tilt angle range.
DESKTOP OR CEILING MOUNTING
Installation flexibility is increased by a choice of table-top or ceiling mounting options.

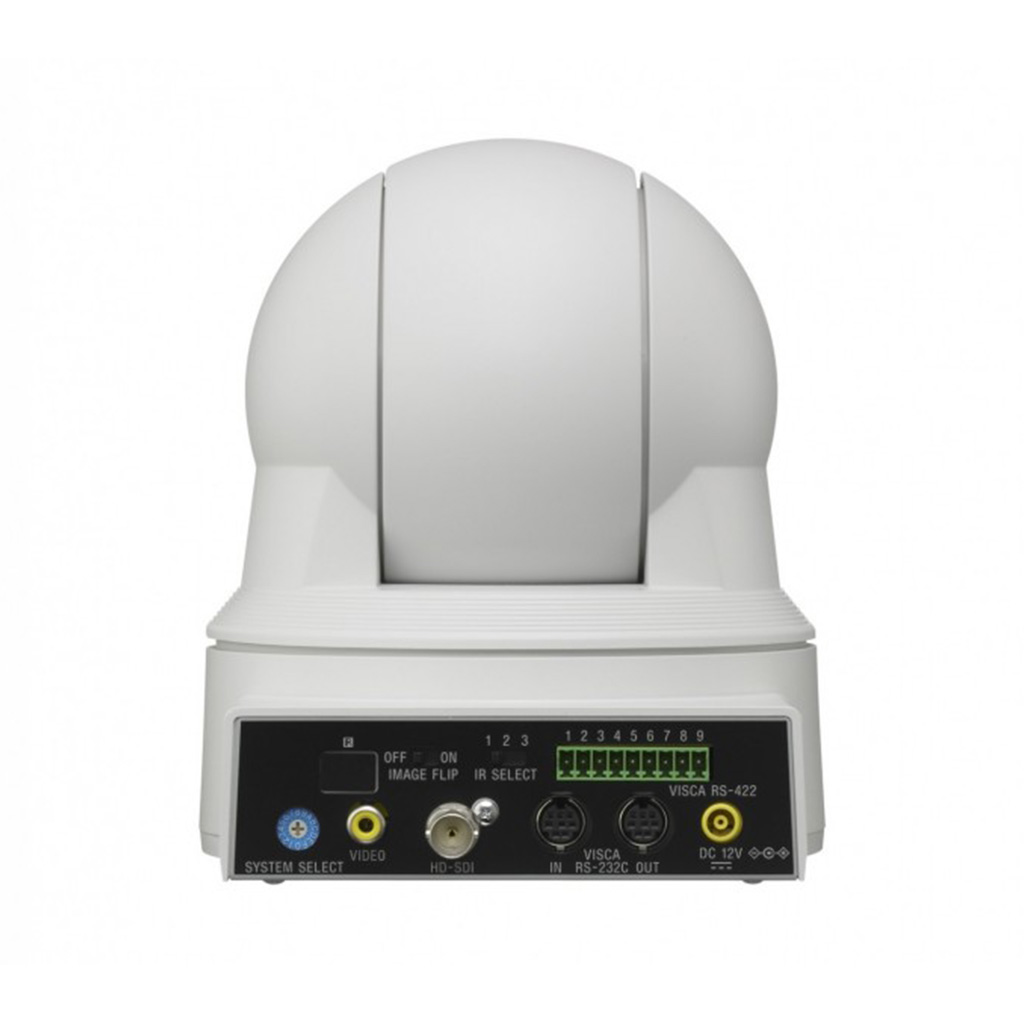

VERSATILE CONNECTIVITY OPTIONS
Support for RS-232C/RS-422 interface protocols allows easy connection with a wide range of peripheral products.
FAST, QUIET PTZ OPERATION
The powerful direct drive motor assures quiet, smooth, rapid movement to the target position over a wide pan/tilt angle range.
100 PRESETS
Up to 100 settings for pan/tilt/zoom, focus, exposure and white balance mode can be stored for instant recall when the camera is used with Sony PCS-XG100S/77S videoconferencing systems.
Specifications
Sony EVI-H100S
Image sensor1/2.8-type Exmor CMOS Signal system – HD1080p/29.97, 1080p/25, 1080i/59.94 (frame out 1080PsF29.97), 1080i/50 (frame out 1080PsF25), 720p/59.94, 720p/50, 720p/29.97, 720p/25 Signal system – SDNTSC/PAL Lens – Focal lengthf=4.7 mm (wide) to 94.0 mm (tele)
F1.6 to F3.5 Lens – Optical zoom20x Lens – Digital zoom12x Min. object distance10 mm (wide) – 800 mm (tele)
*Default: 290 mm Horizontal viewing angle55.4 degres (wide) to 2.9 degrees (tele) (1080 mode) Focus systemsAuto, One-push AF, Manual, Infinity Min. illuminationHigh sensitivity mode: 0.5 lx (F1.6, 50 IRE)
Normal mode: 1.7 lx (F1.6, 50 IRE)Shutter speed1 to 1/10,000 s GainAuto/Manual/Max. AE Gain Limit (-3 to 28 dB, 2 dB steps) White balanceAuto, Indoor, Outdoor, One-push, Manual Wide-DYes Exposure controlAuto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE Auto ICRYes S/N ratioMore than 50 dB Pan/Tilt – Angle – Pan±170° Pan/Tilt – Angle – Tilt+90°/-20° Pan/Tilt – Max. speed – Pan100°/sec Pan/Tilt – Max. speed – Tilt90°/sec Preset positions – 6 Video output – HDHD-SDI Video output – SDVBS Camera control – InterfaceRS-232C/RS-422 Camera control – ProtocolVISCA Power requirementsDC 12 V Power consumption12 W Operating temperature0°C to 40°C (32°F to 104°F) Storage temperature-20°C to +60°C (-4°F to +140°F) Mass1,550 g (3 lb 7 oz) Dimensions (W x H x D)145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches) Body colourBlack, White Supplied accessories
AC adaptor
AC power cable
IR remote commander unit
