Cartoni Omega   Previous Next CARTONI Cartoni Omega Flat base Mitchell Mount (Maximum Payload 209 lbs / 95 kg) The Cartoni Omega fluid head is designed to support Studio and OB cameras equipped with long lenses, studio viewfinder or large teleprompters, the Omega is an extremely compact fluid head incorporating an impressive patented counterbalance system as well as an advanced fluid damping module. The continuously variable counterbalance system is ideally suited to operate with cameras featuring a high center of gravity and weighing from 77 – 176 lb. The frictionless damping modules features a complete patented design, which provides for extraordinary performances over an extended temperature range, with smooth and precise movements together with a linear response in any critical environment. And for ease of use the counterbalance and damping system are connected to easy-to-read digital readouts, allowing quick set up even in low light situations. The Omega interfaces directly…

Read more

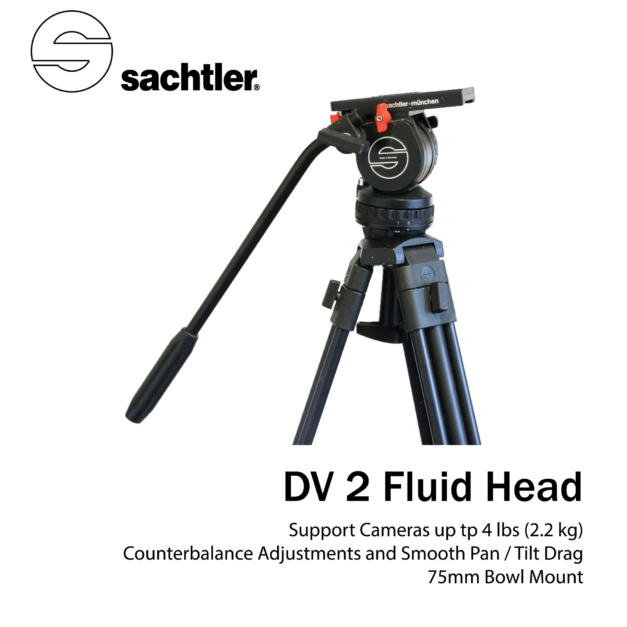

SACHTLER DV-2 75MM TRIPOD HEAD (PAYLOAD: 2 – 4 LBS / 1 – 2 KG) The Sachtler DV-2 is the ideal choice for use with small camcorders & DSLR’s. Their use as second units, in crisis regions and for quality lower-budget productions continues to increase. DV-2 Features; Payload – 2 – 4 lbs System Weight 8.4 lbs Mount – 75mm bowl Tilt Range = + or – 60 degrees Min. Height – 24 inches Max. Height – 55 inches Quick Release / Balance plate: 60 mm / 2.4″ sliding range with Touch & Go

Vinten MK-7B Fluid Head

Vinten MK-7B Mk-7b manual Vinten MK-7B (Flat base / Mitchell Mount) (Payload up to 250 lbs / 115 kg) The Vinten Mark 7B Cam head  is designed to support a full facility studio/OB camera and portable cameras with large lenses, viewfinders and prompters. The Vinten Mk 7B is a Cam Head offering perfect balance and precise performance in both Studio and OB locations. The LF system provides continuously adjustable fluid drag control with rotary knob control for tilt and Pan Axis. The Vinten Mk-7B Cam Head is a pan and tilt camera head, designed to support a variety of cameras, lenses and prompters in perfect balance over a tilt range of ±44.5° to ±60°, dependent on the cams fitted. Using a lubricated friction mechanisms in the pan and tilt axes giving adjustable drag to achieve smooth operation. Whip movements may be executed through both axes regardless of drag setting. Both pan…

Read more

Video 90

Sachtler Video 90  Previous Next VIDEO 90 Manual VIDEO 90 Manual SACHTLER Video 90 150MM FLUID HEAD  (Payload 0-254 lbs / 0-115kg) For professional studio and outside broadcasting work, having lightweight, stable gear that you can rely on is a must. The Sachtler Video 90 FB boasts supports a payload of 115kg and its ergonomic, durable and squeeze-proof design provides safe and secure operation in any position. The QuickFix Mount allows you to mount flat base heads quickly and securely with a single screw. These well-known Sachtler features include 24-step dynamic counterbalancing, which compensates for torque as the camera tilts; frictionless leak proof fluid damping with seven levels of drag and vertical and horizontal brakes for completely smooth movement; and a sliding balance plate with a connection thread for teleprompter mount.150 Transport setting of damping, counterbalance and brakes To ensure smooth operation of the setting rings for the damping over…

Read more

Sachtler Video 60

Video 60 Plus Manual SACHTLER VIDEO 60 Plus 150mm FLUID HEAD (payload 35-145 lbs / 16-65 kg) When working with heavier cameras in studio or on location, being able to work quickly, effectively and safely gives you more time to get the best results. The Sachtler Video 60 Plus Fluid Head features an 18-step counterbalance system allowing you to achieve perfectly adjusted balance quickly and simply. The sliding balance plate has a range of up to 115 mm, giving you even more precise adjustment and safety at any angle, all while supporting a maximum payload of 145lbs / 65 kg. Once you are set and ready to go, the frictionless leak proof fluid damping with multi-levels of drag give you perfectly smooth movement both vertically and horizontally. Whatever the terrain and whatever your schedule, the Sachtler Video 60 Plus is ready. The Video 60 with a weight of 8.4 kg…

Read more

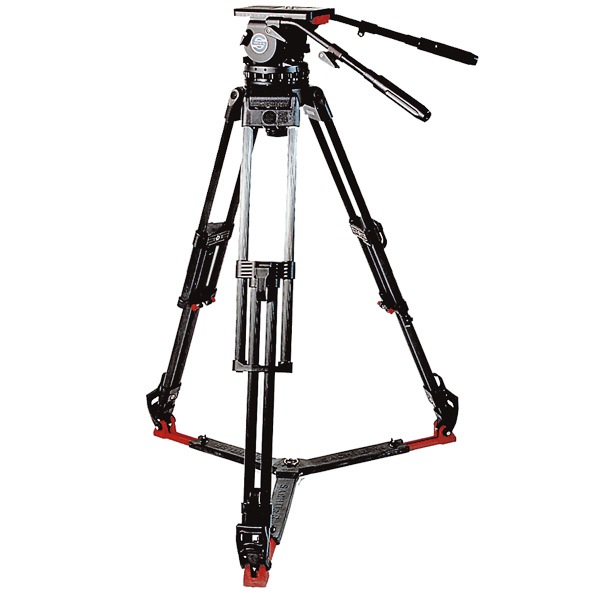

Sachtler Video 30 150mm Fluid Head (payload up to 110 lbs / 50kg)  Weight: 9 kg / 19.8 lb Max load: approx. 50kg / 110 lb Counterbalance: 24-113 Nm/approx. 10 – 48 kg / 22 – 106 lb Balance plate: sliding range 100 mm/ 4″ Grades of drag: horizontally and vertically 7 each and 0Tilt angle:+/- 60°  Camera fitting: Touch & Go camera plate 35 with two  3/8″ screws  Tripod/pedestal fitting:150 mm ball Pan bars:50mm diameter ribbed rosette pattern attachment diameter of 28.5 / 32 / 40 mm. (1.1/1.3/1.6″) length 550 to 740 mm (21.6-29.1″)

Sachtler Video 25

Sachtler Video 25 Specs Sachtler Video 25 PlusManual Sachtler Video 25 Plus 150mm Fluid Head (Payload 77 lbs/35 kg) Comfortable with payloads up to 77 lbs/35 kg, the Sachtler Video 25 Plus is a remarkably lightweight studio and outside broadcast fluid head. A seven-step clamping system means that you be sure your shots are smooth at all levels of drag. The 18-step counterbalance system lets you concentrate on getting the perfect shot, knowing that your camera is always securely positioned and protected from tipping. The days of fumbling around with clumsy attachments are over, with Touch & Go quick release and automatic locking for speedy mounting and removal. Sachtler’s frictionless leak proof fluid damping with seven levels of drag helps with smooth panning and there’s a sliding balance plate too. Designed to guarantee high performance in any kind of shooting environment, and in any lighting conditions. Specifications RangeVideoPan bar length350…

Read more

Video 20 Fluid Head

Sachtler Video 20 100mm Fluid Head  (Payload 4-55lbs / 2-25kg) The Sachtler Video 20 is a great tool, when working in the field calls for gear that is durable enough to go where you need it to, and versatile enough to do what you need it to. The Sachtler Video 20 Fluid Head has a remarkable payload range and an innovative Speed-balance system. The wider range enables lightweight DSLR cameras to be used but it can also handle heavier ENG and EFP camcorders. EFP and ENG TV crews love the excellent multi-level drag system. The Touch & Go function for speedy mounting and removal, robust temperature resistance, parking positions for spare camera screws and bubble level. The Sachtler Video 20 is designed to work as fast and hard as you do. Specifications Weight: 3.5kg / 7.7 lbs. Payload: 4-55 lbs. Counterbalance system: 12 to 48 Nm/approx. 7 to 27kg/15 to…

Read more

Sachtler Video 14 This Sachtler Video 14 is a model that weights 4.6 lb (2.1 Kg) and is able to support a load of up to 33 lb (15 Kg). The tripod has a touch-and -go camera plate with .25-inch and .38-inch screws and a flat base fitting so it can fit any camera compatible with such specifications. This Sachtler Tripod has a counterbalance system to assist in keeping the camcorder balanced even in a tilted position. The pan bars of this tripod have a ribbed rosette pattern with a diameter of 1.2 inches (3.0 cm). The tilt range of this Sachtler Tripod goes from plus 60 degrees to minus 60 degrees and it has a balance plate with a sliding range of over 2 inches (6 cm). It also allows horizontal and vertical drag. Previous Next VIDEO 14 II Sachtler Video 14 75MM FLUID HEAD  (PAYLOAD up to 33…

Read more

FSB 6 Tripod

Sachtler FSB 6  Previous Next Sachtler FSB 6 Manual Sachtler Web Page Sachtler  FSB6 75mm Fluid Head (Payload 3.30 to 17.60 lb) The Sachtler FSB 6 Fluid Head is designed to work with handheld camcorders. Sachtler’s side load mechanism lets you set up by mounting quickly from the side of the tripod. Long displacement makes the task of positioning the camera as easy it is quick to load. Once attached, frictionless leak-proof fluid damping with five levels of drag lets you shoot without jerks or vibrations, across both horizontal and vertical planes. Weighing only 2.6 kg and able to support a payload of up to 8 kg, the Sachtler FSB 6 Fluid Head is both lightweight and durable. Designed to a be a long-serving and high-performing part of your kit, the 75 mm head fitting has an integrated flat base and a large sliding range of 120 mm. Specifications RangeFSBPan…

Read more
