MARSHALL V-LCD70P-3GSDI

The V-LCD70P-3GSDI is a 7.0” high-definition widescreen LCD monitor featuring our completely digital TFT-MegaPixel active matrix LCD platform. With built-in focus assist and false color filters, this monitor is ideal as a light-weight high resolution viewfinder or focus-assist monitor. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using our HyperProcess algorithm with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, 1080i/p. The 3G-SDI input supports Triple Rate 3G/HD/SD video signals. Adjustable color temperature enables the most precise color representation possible. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, Pixel-to-Pixel mode, and 3G-SDI Input Format selection.

Features

■ High-Resolution 7.0” Widescreen Panel The V-LCD70P-3GSDI features an all-digital TFT-MegaPixel active matrix LCD system with 1.2 million pixels. The LCD panel features a brightness of 250 cd/m2 and a contrast ratio of 400:1 making the display ideal in a variety of environments and lighting conditions.

■ Multi-Format Compatibility The V-LCD70P-3GSDI accommodates many video standards with Composite Video, YPbPr and 3G-SDI inputs. Accepted formats include NTSC/PAL, 480i/p, 576i/p, 720p, 1035i, 1080i, as well as 3G 4:2:2 including 1080p-60.

■ End-to-End Digital Signal Processing Analog input signals are digitized using an advanced 10-bit process with 4x over-sampling, 5-line super-adaptive 2D comb filtering, and exacting color space conversion. Video is scaled to fit on the screen in the highest possible resolution using a state-of-the-art LSI that incorporates precision gamma correction and our HyperProcess motion adaptive interpolation for interlaced images.

■ ColorMatch Conversion with Color Temperature Adjustment Emulation of SMPTE-C/EBU color space allows the V-LCD70P-3GSDI to replace any broadcast CRT monitor. Presets include D55, D65 and D93. Bias and Gain adjustment for each color enables precise color matching and white balance.

■ Focus-Assist, False Color Filter, and other Advanced Features Focus-Assist, False Color filter, Aspect ratio settings, underscan mode, blue-only mode, monochrome mode, and H/V delay are a few of the advanced features which make the V-LCD70P-3GSDI at home in any broadcast environment. The 3G-SDI Input allows display of incoming SDI, HD-SDI and 3G formats in the 4:2:2 YUV color space. Pixel-to-Pixel mode also allows native display of any incoming image format.

■ Flexible Screen Markers A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios
used in broadcast environments.

■ User-Definable Function Buttons Four user-definable function buttons on the front-panel allow quick access to numerous settings and features including
focus-assist, false color filter, aspect ratio, screen markers, monochrome mode, color temperature, delay mode, and more.

■ User-Interchangeable Battery Adapters Several battery adapter options accommodate a wide variety of professional batteries and camcorder batteries















Specifications

■ PANEL

Screen Size 7.0” Diagonal
Display Area (h x v) 152.40 x 91.44 mm
Aspect Ratio 15:9 (16:9 / 4:3 Selectable)
Pixels 800 x 480
Color Depth 18-bit (262,144 Colors)
Viewing Angle (h x v) 140° x 100° (CR >10)
Brightness 250 cd/m2
Contrast Ratio 400:1
Dot Pitch (h x v) 0.0635 x 0.1905 mm
Pixel Pitch (h x v) 0.1905 x 0.1905 mm


■ VIDEO INPUT/OUTPUT

Video Input / Output
Supports SMPTE 170M, NTSC/PAL

YPBPR Input / Output
Supports SMPTE 260M, 274M, 296M
3G-SDI Input / Output
Supports SMPTE 292M, 259M, 424M

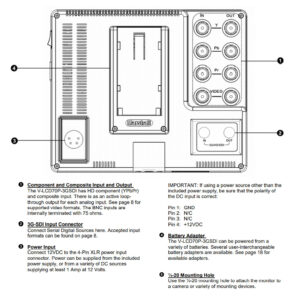

■ CONNECTORS

Video Input
Video 1 x BNC Female (75 Ω)
YPBPR 3 x BNC Female (75 Ω)
Video Output (Active Loop-Through)
Video 1 x BNC Female (75 Ω)
YPBPR 3 x BNC Female (75 Ω)

3G-SDI Input
3G-HD-SDI 1 x BNC Female (75 Ω)
3G-SDI Output (Active Loop-Through)
3G-HD-SDI 1 x BNC Female (75 Ω)

Power Input
4-Pin Male XLR
Pin 1: GND
Pin 2: N/C
Pin 3: N/C
Pin 4: +12VDC


■ ELECTRICAL

Power Consumption 1 Amp (Max) @ 12VDC (12 W Max)
Voltage Requirement 12VDC (10VDC-18VDC)

V-PS12-5V-XLR Power Supply:
Input 100V-240V, 1.5A, 50-60Hz
Output 12VDC, 5A, 60W Max


■ BATTERY ADAPTER

Field-Interchangeable Battery Adapter Options
(Sold Separately):
Marshall
Adapter
Battery
Type
Battery
Voltage
Recommended Battery
CM Canon 7.4 V Canon BP-970G
PM Panasonic 7.2 V Panasonic CGA-D54
JM JVC 7.2 V JVC BN-V438U
SB Sony BP 14.4 V Sony BP-U60
SM Sony NP-Q 7.2 V Sony NP-QM91
SL Sony NP-F 7.2 V Sony NP-F970
Factory Configured Battery Adapter Options:
Marshall
Adapter
Battery
Type
Battery
Voltage
Recommended
Battery
IDX V-Mount 14.4 V IDX E7S
AB Anton Bauer 14.4 V Anton Bauer Hytron 50


■ MECHANICAL

Dimensions (w x h x d): 6.85” x 5.67” x 1.95”

Additional Mounting: ¼”-20 Mounting Bracket
Weight (Monitor Only): 1.55 lbs
Operating Temperature 32° F to 95° F (0° C to 35° C)
Storage Temperature -4° F to104° F (-20° C to 40° C)

RoHs Do not dispose. Return to Manufacturer or Authorized Recycle Facility.
