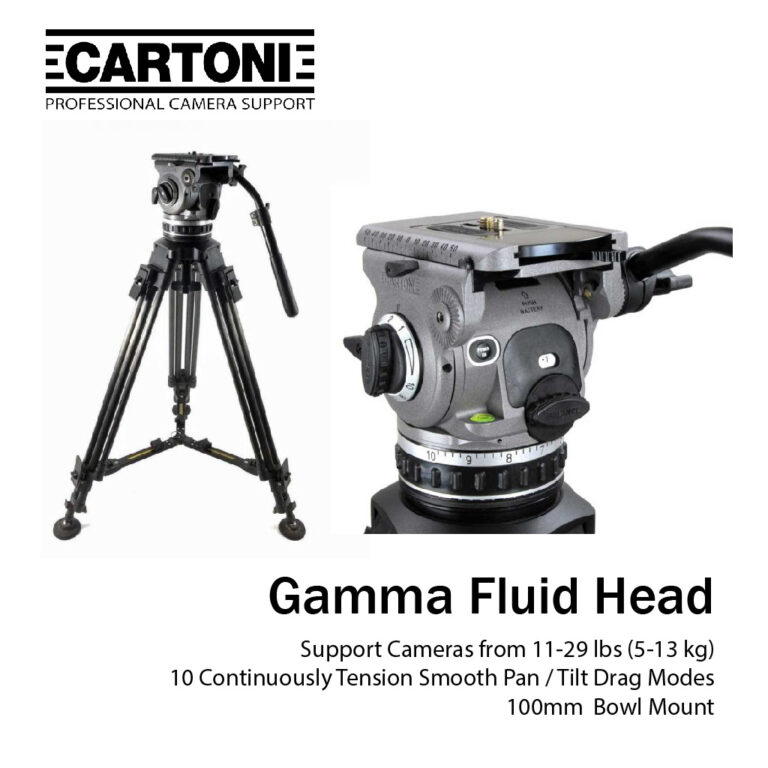

Cartoni Gamma

Cartoni Gamma

100MM FLUID HEAD

(PAYLOAD UP TO 29 LBS / 13 KG)

The Cartoni Gamma Tripod System is designed from rugged, lightweight state-of-the-art materials. The Gamma fluid head and Smart Stop Carbon Fiber ENG tripod, it is ideal for digital camcorders / cameras weighing form 11 to 29 lbs.

The Gamma fluid head features the award-winning, patented fluid damping system which ensures consistent drag levels and smooth camera movements throughout the range and allows perfect reproduction of 10 basic tension settings continuously adjustable in both pan and tilt modes. In addition, an infinitely variable counterbalance with easily readable numeric reference provides excellent performances at any tilt angle from -70° to +90° degrees.

The Gamma comes equipped with a standard 100mm-sliding platform with quick-release system, for additional tilt performances at -/+90 degrees. The included Smart Stop Carbon Fiber ENG tripod provides outstanding rigidity and robustness for perfect pictures without jerks and vibrations under any condition.

Features

Pan and Tilt Control

The Gamma offers a patented fluid damping system ensuring consistent drag levels and smooth camera movements throughout the range and allows perfect reproduction of 10 basic tension settings continuously adjustable in both pan and tilt modes.
Equipped with a standard 100mm-sliding platform with quick-release system, or with an ultra-light integrated sliding camera plate with safety lock

Continuously Adjustable Counterbalance System.

 The Gamma features an infinitely variable counterbalance with easily readable numeric reference providing excellent performances at any tilt angle from -70 to +90 degrees. Outstanding compensation performances are obtained throughout the tilt range, with a patented and extremely compact counterbalance mechanism based on the combined compression of 4 elastic elements, which are controlled by an ergonomic knob.

Specification

Maximum Load Capacity: 33.0 lbs (15 kg)
Mount/Base: 100mm 4″ Half Ball
Balance Plate: 100mm Sliding Plate
Pan & Tilt Range: 360 degrees, -70/+90 degrees
Pan & Tilt Drag: Infinitely Adjustable with 10 Settings
Leveling Bubble: Yes
Material: Aluminum
